Filtration and Solid Phase Extraction

Common Applications for Vacuum Filtration & SPE

How to Choose a Vacuum Pump for Filtration and Solid Phase Extraction

Vacuum pumps are essential tools in a laboratory, particularly for processes like vacuum filtration and solid-phase extraction. Selecting the appropriate pump ensures efficient, reliable, and reproducible results. Understanding the principles behind these techniques and their specific vacuum requirements is key to making an informed decision.

What is Vacuum Filtration?

Vacuum filtration is a common laboratory technique used to separate solid particles from a liquid-gas mixture or a liquid suspension. It is significantly faster than gravity filtration because it utilizes a pressure differential across the filter medium. By reducing the pressure on one side of the filter, the atmospheric pressure on the other side forces the liquid through the filter more rapidly, leaving the solid residue (the filter cake) on the filter surface.

How Does Vacuum Filtration Work?

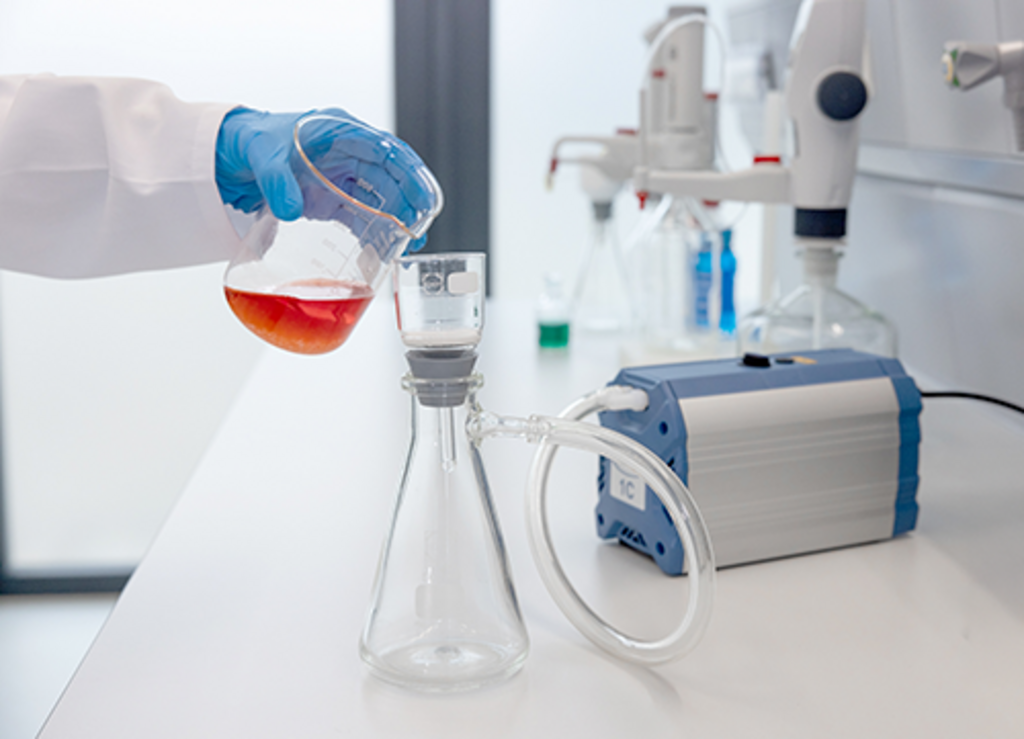

The typical setup for vacuum filtration involves a filter flask (often a Büchner flask) connected to a vacuum source. A filter funnel (like a Büchner or Hirsch funnel) is fitted onto the flask with an airtight seal, and a filter paper or membrane is placed in the funnel.

  1. The liquid sample containing solid particles is poured into the funnel.
  2. The lab vacuum filtration pump reduces the pressure within the filter flask to below atmospheric pressure.
  3. The higher atmospheric pressure outside pushes the liquid through the filter medium.
  4. The solid particles are retained on the filter, while the liquid (filtrate) is collected in the flask.

The efficiency of vacuum filtration depends on the pressure difference, the filter's porosity, the viscosity of the liquid, and the nature of the solids being filtered.

What is Solid Phase Extraction?

Solid Phase Extraction (SPE) is a widely used sample preparation technique designed to isolate, concentrate, and purify analytes from complex matrices before quantitative analysis (e.g., by chromatography). It involves passing a liquid sample through a cartridge or disk containing a solid sorbent. Analytes of interest are either retained on the sorbent while impurities pass through, or impurities are retained while the analytes pass through.

How Does SPE Work?

SPE typically involves four main steps, with vacuum often used to facilitate the movement of liquids through the sorbent bed at a controlled rate:

  1. Conditioning: The sorbent is treated with a solvent to activate it and ensure reproducible interaction with the sample.
  2. Loading: The sample is passed through the sorbent. Analytes (or interferences) bind to the sorbent.
  3. Washing: A specific solvent is passed through to remove weakly bound impurities while leaving the analytes of interest on the sorbent.
  4. Elution: A different solvent is used to disrupt the analyte-sorbent interactions, releasing the purified and concentrated analytes for collection.

Vacuum helps maintain a consistent and gentle flow rate, which is critical for effective separation and recovery.

Need help choosing the best vacuum pump for your lab,  consult the comparison chart below or reach out to our lab vacuum specialist through our  Contact Form.



Common Applications for Vacuum Filtration & SPE

  • Pharmaceutical & Biotechnology: These sectors rely on vacuum filtration for critical sterile filtration of drug products and clarification of biological solutions. SPE is then essential for isolating and purifying active pharmaceutical ingredients (APIs) and metabolites during drug discovery, development, and quality control.
  • Food & Beverage: The food and beverage industry uses vacuum filtration to clarify products like juices and wine, and for microbiological quality control. SPE plays a vital role in food safety by enabling the detection of contaminants such as pesticides or toxins, and for analyzing flavor and aroma compounds.
  • Environmental Monitoring: Vacuum filtration is key for preparing water samples, for instance, by measuring suspended solids or for microbiological testing. Subsequently, SPE is crucial for extracting and concentrating pollutants like pesticides or industrial chemicals from water, soil, and air to ensure regulatory compliance.
  • Chemical Manufacturing: In chemical production, vacuum filtration aids in separating solid products from reaction mixtures and in quality control of materials. SPE can be employed for purifying chemical intermediates or concentrating trace impurities for analytical verification of product purity.
  • Clinical Diagnostics & Forensics: These fields utilize vacuum filtration for preparing biological specimens. SPE is indispensable thereafter for a wide range of applications, including toxicology screening, therapeutic drug monitoring, and the identification of drugs of abuse.

Vacuum Filtration and SPE Process Requirements

While both processes utilize vacuum, their specific needs can differ:

For vacuum filtration, the vacuum requirement is generally modest. A vacuum level of around 100 mbar (absolute) provides 90% of atmospheric pressure as the driving force. Deeper vacuum levels (e.g., below 20 mbar) often yield diminishing returns in speed and can risk evaporating volatile solvents from the filtrate or damaging delicate samples.



For SPE, a controlled, gentle vacuum is paramount to ensure optimal interaction between the sample and the sorbent. The exact vacuum level will depend on the sorbent type, particle size, and column dimensions, but precise control is more critical than achieving a very deep vacuum.

The required pumping speed depends on the filter size, the volume of liquid being processed, and any potential leakage in the system. For larger setups or multiple simultaneous operations (e.g., SPE manifolds), a higher pumping speed can be beneficial. Two-stage pumps, with their higher pumping speeds, may accelerate filtration but necessitate careful vacuum control.

For filtration, precise vacuum control is often not essential, but a manual regulator can be useful to prevent solvent evaporation or too-rapid filtration, especially with volatile solvents or delicate samples.



For SPE, maintaining a defined flow or drip rate is crucial for reproducibility. This often requires a vacuum regulator and gauge for fine-tuning.

If aggressive solvents or corrosive vapors are present in the samples, the pump must be constructed from chemically resistant materials.

Vacuum Filtration and SPE Pump Requirements

Based on the process needs, ideal lab vacuum pumps for these applications should have:

  • Pump Type: Oil-free diaphragm pumps are strongly recommended. They are low maintenance, do not contaminate samples with oil, and can be designed for chemical resistance.
  • Ultimate Vacuum:
    • Single-stage diaphragm pumps with an ultimate vacuum of around 70-100 mbar are often ideal for most filtration tasks.
    • Two-stage pumps, offering deeper vacuum (e.g., <10 mbar), can be used for SPE or to accelerate filtration with larger volumes or finer filters, but active vacuum control is highly advised.
  • Chemical Resistance: For SPE and filtration involving organic solvents or acidic/basic solutions, pumps with fluoropolymer wetted parts (heads, diaphragms, valves) offer superior chemical resistance and vapor tolerance. These are often called chemistry diaphragm pumps.
  • Vacuum Control: A manual vacuum regulator valve and gauge are highly beneficial, especially for SPE and when using two-stage pumps for filtration, to adjust and monitor the vacuum level.
  • Accessories:
    • Inlet Catchpot (AK): Essential to protect the pump from accidentally ingested liquid droplets or particles.
    • Outlet Condenser/Separator (EK): Useful for capturing solvent vapors at the pump outlet, protecting lab air and the environment, and enabling solvent recovery.
  • Automation: For high-throughput or repetitive tasks, chemistry pumping units equipped with electronic vacuum controllers can automate the process and ensure consistent conditions.

Tips to Choose the Best Laboratory Vacuum Pump for Filtration & SPE

  • Assess Chemical Compatibility: Will you be working with aggressive solvents or corrosive chemicals? If yes, a chemistry diaphragm pump with fluoropolymer wetted parts is essential.
  • Determine Vacuum Level Needs: For most filtration, ~100 mbar is sufficient. For SPE, precise control is more important than ultimate depth.
  • Consider Pumping Speed: Larger filter setups, multiple SPE cartridges, or higher viscosity liquids may benefit from higher pumping speed.
  • Evaluate Need for Control: SPE requires good vacuum control. For filtration with volatile solvents or when using deeper vacuum pumps, control is also important. Consider a pump with an integrated controller or add a manual regulator.
  • Prioritize Oil-Free Operation: Diaphragm pumps avoid oil misting and sample contamination.
  • Factor in Accessories: Always use an inlet catchpot. Consider an outlet condenser if working with significant solvent volumes.

Recommended Solutions

BRANDTECH offers a wide range of oil-free vacuum pumps well-suited for filtration and SPE applications:

ME 1 / ME 1C: These compact, single-stage diaphragm pumps provide an ultimate vacuum of ~100 mbar (ME 1) and 70-100 mbar (ME 1C). The ME 1C is a chemistry pump, offering excellent chemical resistance for applications involving more aggressive solvents. They are ideal for single-funnel filtrations and some SPE applications.

ME 2C NT / ME 4C NT: These two-stage chemistry diaphragm pumps provide deeper ultimate vacuum (~7 mbar for ME 2C NT, ~1.5 mbar for ME 4C NT) and higher pumping speeds. They are robust choices for more demanding SPE, multiple filtrations, or when faster processing is needed. Their superior chemical resistance handles aggressive vapors.



It is highly recommended to use these pumps with a vacuum regulator for filtration and SPE to control the vacuum level precisely and prevent solvent evaporation or overly rapid flow.

ME 2 NT / ME 4 NT: These are the standard (non-chemistry) versions of the two-stage pumps, offering the same vacuum performance and pumping speeds as their "C" counterparts but are intended for non-corrosive media. They can accelerate filtration processes but should also be used with a regulator for optimal control.

Please Note: All listed NT models represent an advanced generation with improved performance and durability. For precise control, especially with the two-stage pumps (ME 2C NT, ME 4C NT, ME 2 NT, ME 4 NT), consider pairing them with a manual vacuum regulator unit with a gauge or opting for a fully integrated chemistry pumping unit with electronic control for automated processes. Always protect your pump with an inlet catchpot (AK).

Convenient, quick and simple to use due to the new top-mounted power switch. Whisper quiet, very low vibration and requires minimal benchtop space.
Whisper quiet and very low vibration. Powerful, even for parallel operation of several applications. High performance even at low vacuum levels.
Whisper quiet and very low vibration. Powerful, even for parallel operation of several applications. High performance even at low vacuum levels.
Convenient, quick and simple to use due to the new top mounted power switch. Whisper quiet and very low vibration. Requires minimal bench top space.
Whisper quiet and very low vibration. Powerful, even for parallel operation of several applications. High performance even at low vacuum levels.

How can we help with your lab vacuum?

By carefully considering your specific application needs and the features of available pumps, you can find a vacuum pump that will provide reliable and efficient performance for years to come. If you have any questions, reach out to our customer service at Phone: 1-888-522-2726 | Email: info@brandtech.com
