Lyophilization

Lyophilization is a critical process used in pharmaceuticals, food preservation, and scientific research to remove moisture while maintaining the structural integrity of sensitive materials. By leveraging vacuum technology, the process ensures efficient sublimation, resulting in stable, long-lasting products. Selecting the right vacuum pump is essential for optimizing freeze drying efficiency, reducing processing time, and ensuring consistent results. This guide explores the lyophilization process, its applications, and the best vacuum solutions from BRANDTECH Scientific.





What is Lyophilization?

Lyophilization, also known as freeze drying, is a dehydration process used to preserve perishable materials by freezing them and then removing the ice via sublimation. This technique is widely used in pharmaceuticals, food preservation, and laboratory applications to maintain product integrity, extend shelf life, and ensure easy reconstitution.

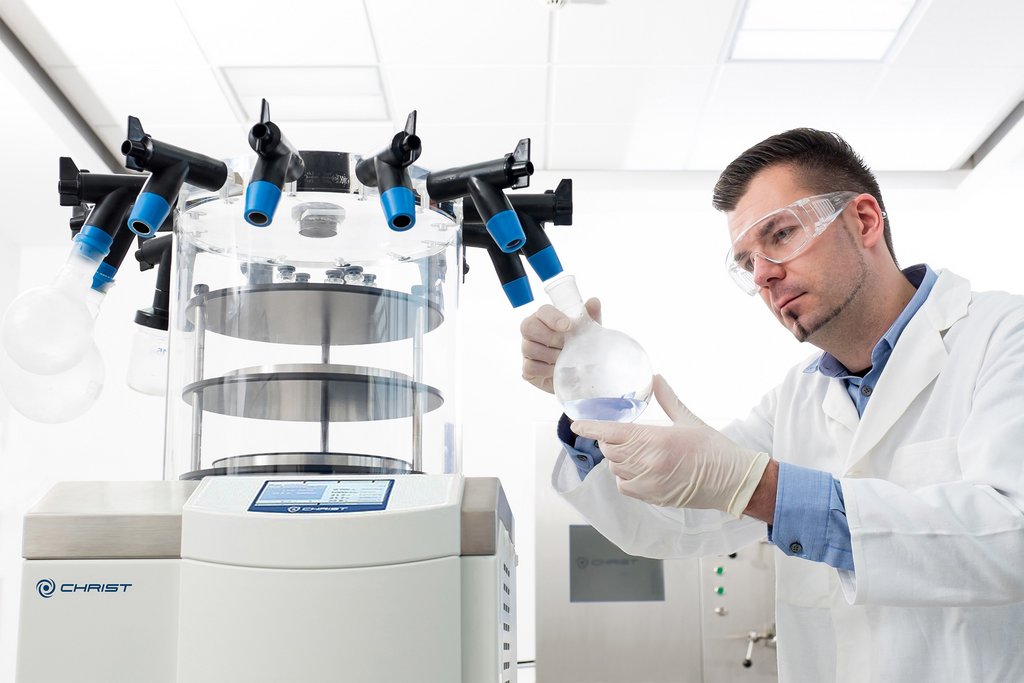

Scientist preparing the freeze dryer for lyophilization

Advantages of Lyophilization

  • Extended Shelf Life: Lyophilized products can be stored for long periods without refrigeration.
  • Preservation of Structural Integrity: The process maintains the original shape, texture, and composition of the material.
  • Retention of Biological Activity: Essential properties of biological materials remain unchanged.
  • Easy Reconstitution: Lyophilized materials can be quickly rehydrated for use.
  • Enhances Stability of a Dry Powder: The freeze-drying process ensures the long-term stability of powdered formulations, preventing degradation and maintaining potency.

Disadvantages of Lyophilization

  • Energy Intensive: The process requires specialized equipment and consumes significant energy.
  • Time-Consuming: Compared to other drying methods, freeze drying takes longer.
  • Specialized Equipment: Requires dedicated freeze dryers and vacuum pumps for optimal results.

What is the Lyophilization Process?

The freeze-drying process consists of three main stages/phases:



Freezing Phase

The product is frozen at low temperatures to form ice crystals. Rapid freezing helps create smaller ice crystals, preserving structural integrity, while slow freezing can lead to larger crystals that may damage cell structures.



Primary Drying Phase (Sublimation)

Under reduced pressure, heat is applied to allow the ice to transition directly into vapor without passing through a liquid phase. A vacuum pump plays a critical role in maintaining low pressure and removing water vapor efficiently.



Secondary Drying Phase (Desorption)

In this final stage, bound water molecules are removed at slightly higher temperatures. This step ensures that the final product achieves the necessary moisture levels for long-term product stability and extended shelf life.



Lyophilization Process Requirements

Successful lyophilization depends on precise control of environmental conditions, including:

  • Temperature Management: Precise control of critical temperatures during freezing and heating phases is essential to facilitate sublimation and maintain product integrity.
  • Pressure Control: The vacuum system must maintain optimal pressure for effective drying.
  • Vacuum Pump Efficiency: A high-quality vacuum pump ensures the removal of water vapor without contamination.
  • System Size Considerations: The required vacuum system must be chosen based on the application scale, whether for laboratory-scale research, pilot-scale testing, or full-scale production, to ensure the appropriate volume flow rate for efficient processing.

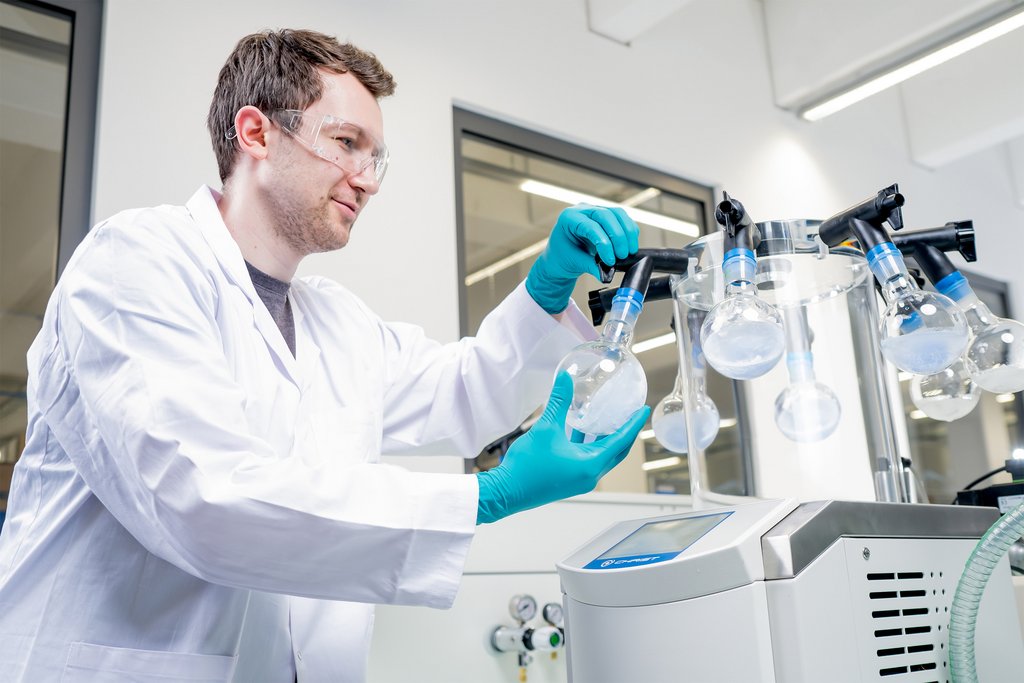

Scientist preparing the freeze dryer for lyophilization

Lyophilization Pump Requirements

Choosing the right vacuum pump is critical for an efficient lyophilization process. Key factors to consider include:

  • Ultimate Vacuum Level: A deep vacuum is essential to facilitate sublimation. Lyophilization requires vacuum levels in the range of 10⁻¹ to 10⁻³ mbar, which cannot be achieved with diaphragm pumps alone. High-performance vacuum systems are essential for effective residual drying and maintaining an oxygen-free environment in specialized applications.
  • Pumping Speed and Efficiency: The pump must handle the required volume of vapor efficiently.
  • Condensate Compatibility: Depending on the substances being dried, vacuum pumps must offer excellent condensate compatibility to handle solvent vapors without performance degradation.
  • Chemical Resistance: If dealing with solvents or aggressive chemicals, the pump should be resistant to corrosion. Pumps with chemical-resistant coatings or oil-free technology provide enhanced durability in solvent-heavy environments.

Applications of Lyophilization

Food Preservation

Freeze drying is widely used in the food industry for long-term storage of fruits, vegetables, and ready-to-eat meals. The process retains flavor, texture, and nutritional content, making it an ideal method for space food, camping supplies, and emergency rations.



Pharmaceuticals

Many pharmaceutical products like injectable drugs, vaccines, and biologics are lyophilized to improve stability and extend shelf life. The process prevents degradation and allows for rapid reconstitution in medical applications.



Laboratory Reagents

Sensitive reagents used in molecular biology, diagnostics, and chemical research are freeze-dried to maintain their activity and effectiveness over time.



Bacterial Strains

Microbial cultures are lyophilized for long-term preservation in research and industrial applications. This process ensures bacterial viability without requiring deep freezing conditions.



Recommended Solutions

For effective lyophilization, selecting the right vacuum pump is essential. BRANDTECH Scientific offers high-performance vacuum pumps designed for freeze drying applications:

10-3 mbar vacuum range. 100% oil-free and chemically resistant. No wear parts.
Reduced internal corrosion, even when working with corrosive vapor. Oil changes typically reduced 90% or more compared with rotary vane pumps.

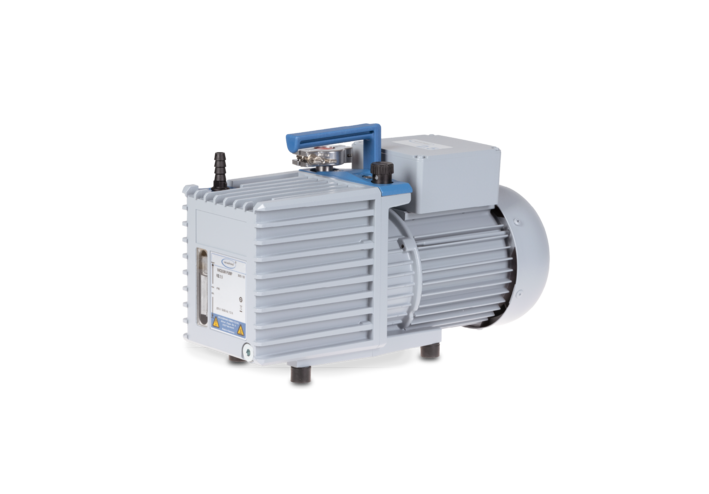

A high-performance rotary vane pump with extra compact design and low weight. The ideal solution for applications that require low ultimate vacuum at medium gas flow rate.
These powerful rotary vane pumps feature a particularly compact design and low weight for pumps of this capacity. Used when an ultimate vacuum between a few mbar and down to 10-3 mbar has to be attained.

Why Choose BRANDTECH Scientific Vacuum Pumps?

  • Reliable Performance: Ensures consistent vacuum levels throughout the drying process.
  • Chemical Resistance: Designed to handle a variety of substances without degradation.
  • Oil-Free Technology: Reduces contamination risk and simplifies maintenance.

Frequently Asked Questions

Lyophilization helps maintain the stability of drugs, particularly injectables and biologics, by removing moisture that could cause degradation. It also allows for easy storage and transportation without refrigeration.

Yes, a vacuum pump is essential for freeze drying. It lowers the pressure in the drying chamber, allowing ice to sublimate directly into vapor, leaving behind a dry product.

Lyophilization involves freezing the material first and then removing water through sublimation under a vacuum. Vacuum drying, on the other hand, removes water at lower pressures but without freezing, which may not preserve product integrity as well as lyophilization.

Lyophilized products are completely dry and shelf-stable, requiring no refrigeration, while frozen products retain moisture and must be stored at low temperatures to prevent spoilage

How can we help with your lab vacuum?

By carefully considering your specific application needs and the features of vacuum pumps, you can find a vacuum pump for reliable and efficient performance solution for years to come. Or contact our vacuum specialists for a personalized solution.
