How to Choose the Right Vacuum Pump for Your Rotary Evaporator

Rotary evaporation is an essential process in many laboratories, helping researchers gently remove and separate solvents without damaging heat-sensitive compounds. At the heart of this system is the vacuum pump, an often-overlooked component that directly impacts evaporation speed, safety, and solvent recovery.



Whether you’re outfitting a new lab or replacing aging equipment, choosing the right vacuum pump for a rotary evaporator depends on a range of technical and application-specific factors. This guide covers everything you need to know, from how rotary evaporators work to which BRANDTECH Scientific vacuum pumps are best suited for your lab.

What is Rotary Evaporation?

Rotary evaporation is a solvent removal method that uses reduced pressure to lower the boiling point of liquids. By operating at a lower temperature, it enables gentle evaporation, which preserves sample integrity while increasing efficiency.

A rotary evaporator (rotovap) typically includes:

  • A rotating evaporating flask
  • A heated bath
  • A condenser
  • A receiving flask
  • A vacuum pump

Together, these components enable controlled evaporation, solvent recovery, and safe handling of volatile compounds.

Applications of Rotary Evaporation

Rotary evaporation is used in a wide range of laboratory environments. Each application has slightly different demands on the vacuum system:

  • Pharmaceutical Research: Concentration of reaction mixtures, removal of volatile solvents, purification of compounds. Rotary evaporators are also commonly used to isolate and purify products following chemical reactions.
  • Cannabis Extraction: Post-processing to remove residual ethanol or butane without degrading cannabinoids or terpenes.
  • Academic Labs: Teaching and small-scale sample prep requiring versatile, reliable equipment.
  • Industrial R&D: Large-scale formulation testing, requiring powerful, chemically resistant pumps with consistent vacuum levels.

For all these applications, a well-matched vacuum pump is critical to efficiency, reproducibility, and solvent recovery.

How Does a Rotary Evaporator Work?

A rotovap works by placing a liquid sample in a rotating flask and heating it in a temperature-controlled bath, where both pressure and bath temperature influence the efficiency of solvent removal. As the flask rotates, surface area increases and the solvent begins to evaporate. A vacuum pump reduces the pressure, which lowers the boiling point of the solvent and allows it to vaporize at a safer, lower temperature. The vapor then passes through a condenser, where it is condensed and collected in a receiving flask.

The vacuum pump plays a central role in this system. Not only does it enable faster evaporation at lower temperatures, but it also improves solvent recovery and reduces emissions. The appropriate vacuum pump can vary depending on your evaporation volume and flask size, as larger flasks may require higher flow rates to maintain efficient solvent removal.

Process Requirements for Rotary Evaporation

The vacuum requirements for rotary evaporation vary significantly depending on the solvent and temperature. For example, water and DMSO require lower pressures than ethanol or methanol to evaporate effectively.

Key process requirements include:

  • Medium to High Vacuum Capability: To handle a range of solvents and ensure effective evaporation, particularly for high-boiling-point compounds.
  • Fast, Sensitive Vacuum Control: Especially important for samples prone to bumping, superheating, or foaming.
  • Consistent Vacuum Levels: For shorter process times and higher reproducibility across experiments.
  • Optimal Condensation: The vacuum must support efficient condensation in the cooling coil, preventing vapor loss.
  • Post-Pump Solvent Recovery: The system should recover residual solvent vapors after the pump to reduce environmental and lab air contamination.

Modern vacuum systems often include integrated vacuum regulation, which automatically adjusts pressure to achieve optimal evaporation rates. This not only shortens process time but also improves reproducibility and lab safety. In addition, automatic regulation helps maintain consistent solvent stripping rates across multiple runs, improving overall process reliability.

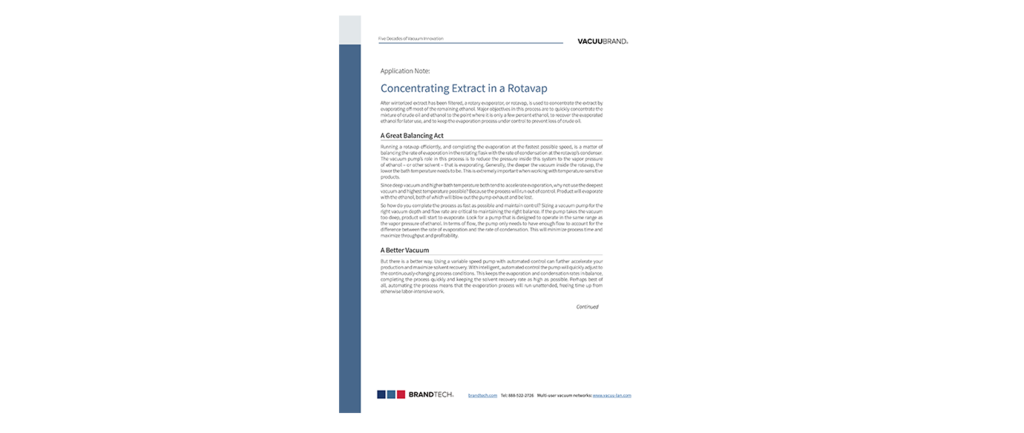

For a more technical overview of vacuum considerations during evaporation and solvent recovery, check out our Rotary Evaporation Application Note (PDF).

Pump Requirements for Rotary Evaporation

Choosing the right rotary evaporator vacuum pump means selecting equipment that’s chemically resistant, reliable, and optimized for performance. Key requirements include:

  • Chemical and Condensate Compatibility: Look for diaphragm pumps with PTFE or similar materials that resist aggressive solvents and harsh vapors commonly encountered in chemical and cannabis labs.
  • Gas Ballast Functionality: A gas ballast valve helps prevent solvent vapors from condensing inside the pump, which extends the pump’s service life and maintains consistent vacuum performance during prolonged evaporation runs.
  • Deep Ultimate Vacuum Levels (Even with Gas Ballast): Critical for evaporating high-boiling-point solvents at lower temperatures.
  • Stable, Controlled Operation: Precise vacuum regulation prevents bumping and foaming, even with heat-sensitive samples.
  • Emission Condenser Compatibility: Enhances solvent recovery and reduces lab air contamination.
  • Oil-Free Design: Diaphragm pumps eliminate oil-related maintenance and environmental risks.
  • Vacuum Control Options: Depending on the needs of your lab, you may require manual, external, or fully automatic vacuum control options to maintain stable and repeatable evaporation conditions.

Choosing the Right Pump

Consider the following when selecting a pump:

  • What solvents are you using, and how volatile are they?
  • What is the volume of solvent being evaporated?
  • What size is the sample flask?
  • Do you need automation or advanced vacuum control for sensitive samples?
  • Is environmental impact and lab air quality a top priority?
  • Are you working with small batches or scaling up to industrial throughput?
  • Do you need a low-maintenance solution?

Explore Vacuum Pumps for Rotary Evaporators

A reliable, well-matched vacuum pump for rotary evaporator applications is essential for safe, fast, and effective solvent removal. From integrated control to chemical resistance and solvent recovery, the right pump makes a measurable difference in lab performance and environmental safety. Many labs prefer a dry vacuum pump, such as an oil-free diaphragm model, for its low maintenance and clean operation, especially when working with volatile or corrosive solvents.

BRANDTECH Scientific offers a wide range of oil-free diaphragm vacuum pumps that meet the performance, chemical resistance, and vacuum control needs of rotary evaporator users. Our systems are designed to function as complete vacuum solutions, integrating seamlessly with your evaporator setup while supporting solvent recovery, emission control, and precise vacuum regulation.



If you need help choosing the best model for your lab, please consult the comparison chart below or give us a call today at 888-522-2726 to speak with a lab vacuum specialist. You can also contact us through our Contact Form.

Need help choosing the best model for your lab,  consult the comparison chart below or give us a call today at 888-522-2726 to speak with a lab vacuum specialist. You can also contact us through our  Contact Form.



Featured Oil-free diaphragm vacuum pumps

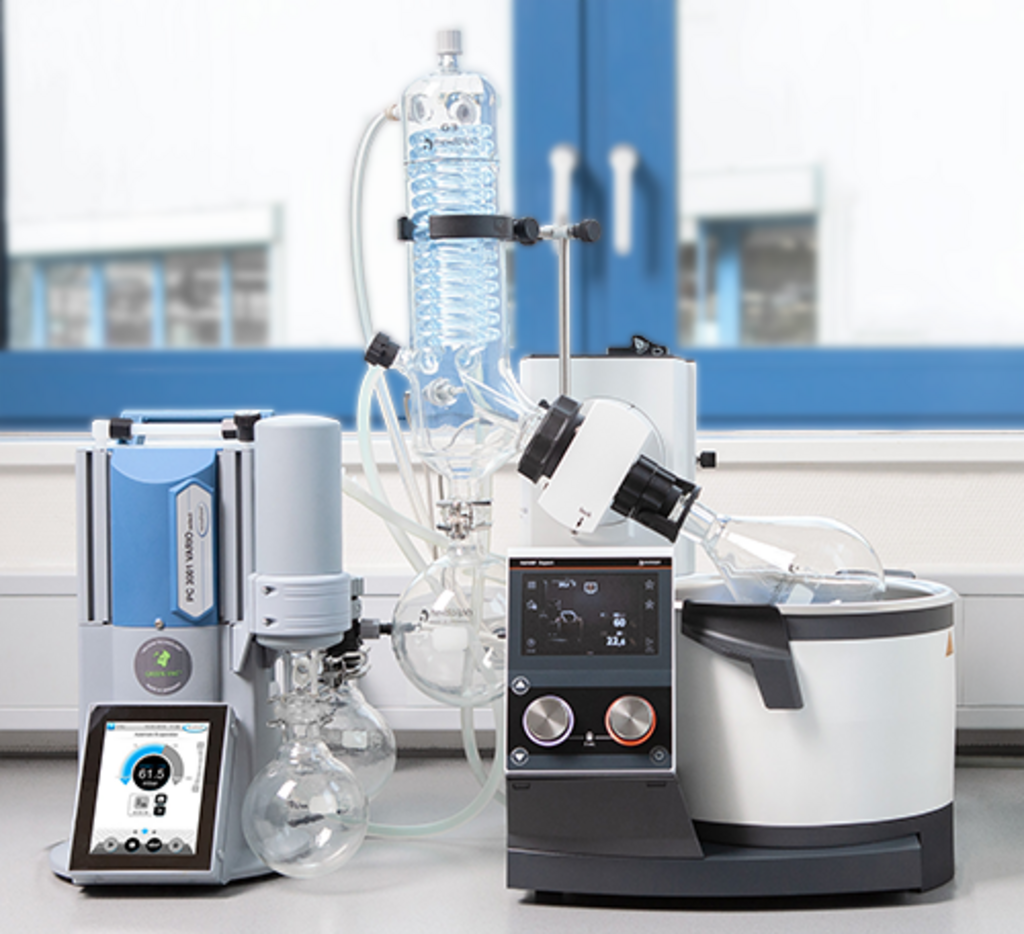

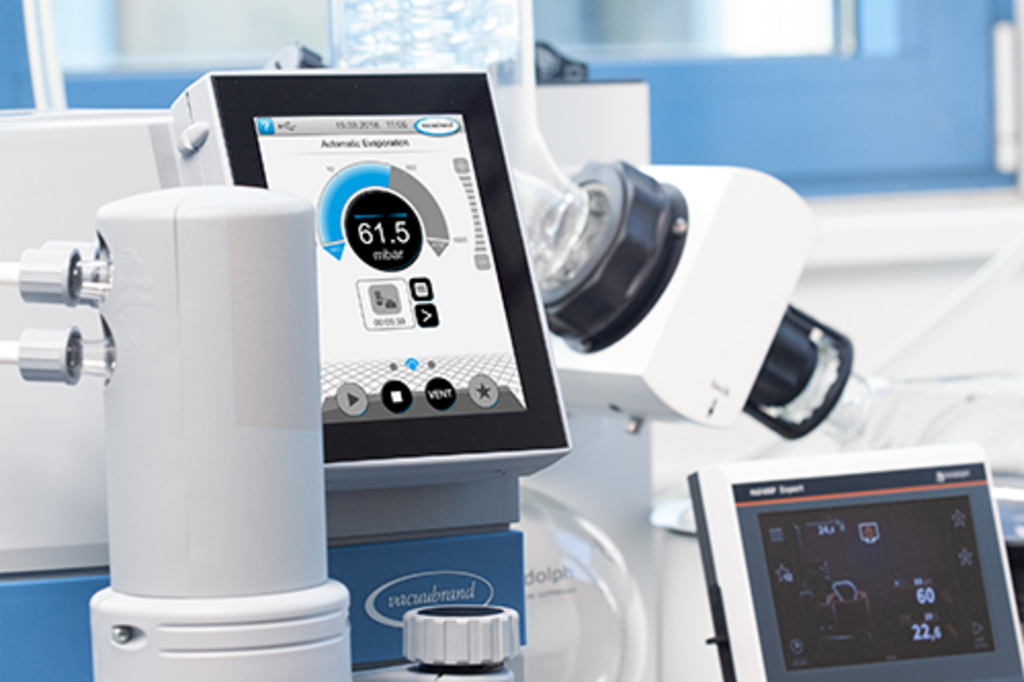

Simplify lab work with the VACUU·SELECT vacuum controller with graphic user interface and predefined applications. Whisper quiet and ultra low vibration in this compact and powerful pump.

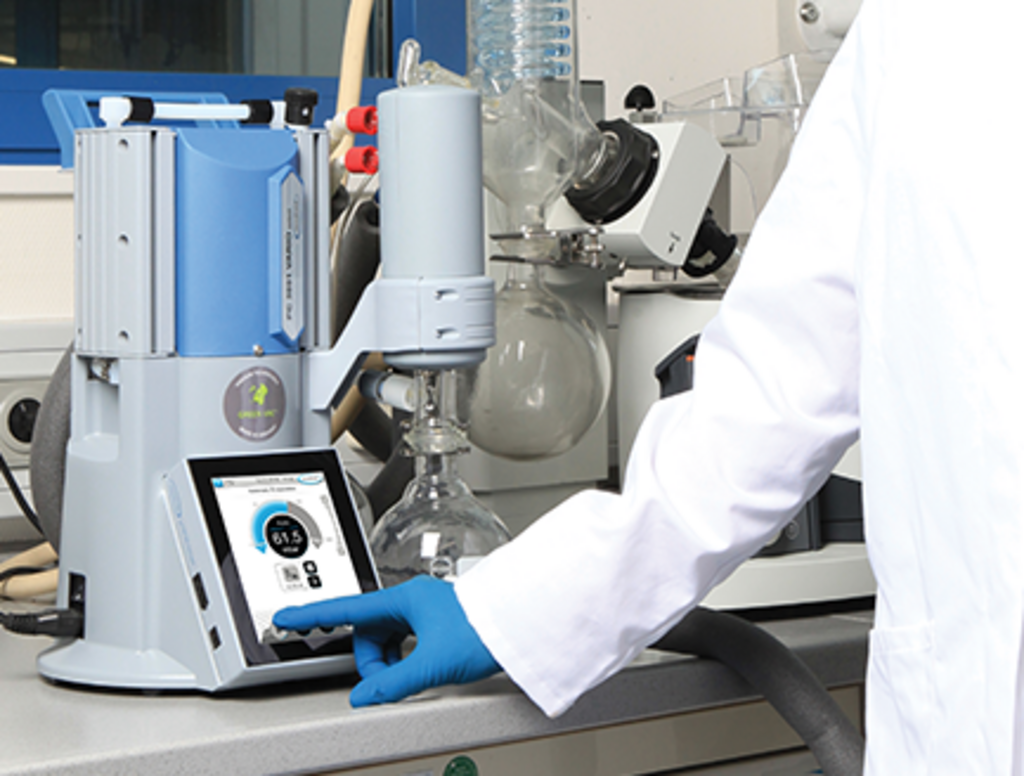

VACUU·SELECT vacuum controller with graphical user interface and predefined application. Powerful vacuum pump meets high vacuum requirements for most high boiling solvents.

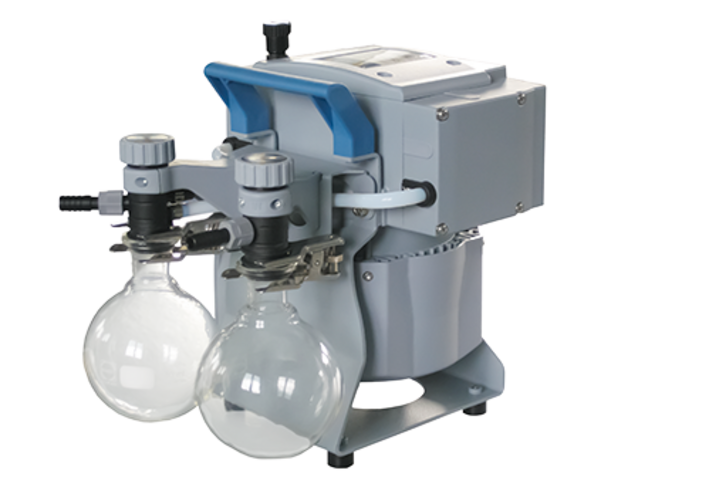

MZ 2C NT +2AK Chemistry vacuum pump #20732503
High performance at low vacuum levels and separators at inlet and outlet to collect condensates.
Exceptional chemical resistance and superior vapor tolerance. Excellent ultimate vacuum even with gas ballast. Whisper quiet and ultra low vibraion.
Chemical resistant and superior vapor tolerance. Convenient, quick and simple to use due to the top mounted power switch

Rotary Evaporator Vacuum Pump Comparison Chart

ModelFinal VacuumFlow Control (m 3/h) Vacuum ControlBest For
PC 3001 VARIO2 mbar1.6 (m 3/h) Automatic (VARIO)


-Precision evaporation

-Phara, cannabis, academic labs

PC 3001 VARIO2 mbar3.4 (m 3/h) Automatic (VARIO)

- Hight-throughput evaporation

- Industrial R&D, multi-user labs

MD 4C NT1.5 mbar3.9 (m 3/h) Manual/External

- Rugged, continuous operation

- Pharma, industrial use

ND 1C7 mbar1.3 (m 3/h) Manual

- Compact or basic setups

- Teaching, academic labs

MZ 1C7 mbar2.04 (m 3/h) Manual

- Entry-level evaporation

- Cannabis or small research labs
