Choosing the Right Lab Vacuum Pump for Your Schlenk Line Setup

Schlenk lines, also known as vacuum manifolds, are indispensable tools in synthetic chemistry, allowing researchers to manipulate air and moisture-sensitive compounds with precision. The effectiveness of a Schlenk line setup heavily relies on the quality and suitability of its vacuum pump. Selecting the appropriate pump is crucial for achieving the necessary vacuum levels, ensuring the integrity of experiments, and protecting the pump from corrosive chemicals.

What are Schlenk Lines / Vacuum Manifolds?

Developed by the German chemist Wilhelm Schlenk in the early 20th century, a Schlenk line is a piece of laboratory glassware that consists of a dual manifold with several ports. One manifold is connected to a source of purified inert gas (typically nitrogen or argon), while the other is connected to a high-vacuum pump. Each port typically has a stopcock or valve that allows a reaction flask or other glassware connected to the port to be switched between the vacuum and inert gas sources. This setup enables chemists to perform reactions, distillations, and solvent removal under an inert atmosphere, preventing unwanted side reactions with oxygen or water.

How Does a Schlenk Line Work?

The operation of a Schlenk line involves cycles of evacuating air from the connected glassware and refilling it with inert gas. This process, often repeated multiple times, ensures that the reaction environment is free of atmospheric contaminants. The vacuum pump plays a critical role in removing air and volatile solvents, while the inert gas provides a protective blanket for sensitive reagents and products.



Successfully performing these operations requires a vacuum system capable of reaching an adequate ultimate vacuum (often in the 10-2 to 10-4 mbar range), efficiently handling solvent vapors without performance degradation, offering resistance to potentially corrosive substances, and providing sufficient pumping speed to evacuate the apparatus in a timely manner. These demands highlight the importance of careful pump selection.

Common Applications for Schlenk Lines

Schlenk lines are versatile tools crucial in both academic research and industrial R&D settings where an oxygen-free and moisture-free environment is paramount. Their applications underpin advancements in various sectors:



  • Pharmaceuticals and Agrochemicals: Essential for the synthesis and handling of air-sensitive intermediates, active pharmaceutical ingredients (APIs), and complex molecules during drug discovery and development, as well as in the creation of novel agrochemicals.
  • Materials Science and Electronics: Widely used in the development of new materials such as catalysts, polymers, nanoparticles, semiconductors, and components for OLEDs or solar cells, where precursor purity and reaction atmosphere control are critical.
  • Fine and Specialty Chemicals: Employed in the synthesis of high-value, low-volume chemicals where stringent reaction conditions are necessary to achieve desired purity and yields, including organometallic compounds and other sensitive reagents.
  • Academic and Foundational Research: Fundamental to university research labs across inorganic, organic, organometallic, and polymer chemistry, driving innovation and understanding that often translates to industrial applications.

Need help selecting the best pump for your lab,  consult the comparison chart below or reach out to our lab vacuum specialist through our  Contact Form.



How to Choose the Right Vacuum Manifold Pump

Selecting the ideal vacuum pump for your Schlenk line involves considering several factors:

Ultimate Vacuum

Determine the lowest pressure required for your applications. While rotary vane pumps have traditionally been used for their deep vacuum capabilities, modern oil-free options like screw pumps can also achieve the necessary vacuum levels (e.g., down to 10-3 mbar).

Chemical Compatibility

If you frequently work with corrosive substances, opt for a pump specifically designed for chemical resistance. Chemistry-hybrid pumps, which combine rotary vane and diaphragm pump technologies, or oil-free pumps with chemically resistant wetted parts, are excellent choices. These can significantly reduce internal corrosion and extend pump life.

Oil-Sealed vs. Oil-Free

Oil-sealed rotary vane pumps are a common choice, capable of reaching low pressures and handling vapor loads, especially when equipped with a gas ballast. However, they require regular oil changes and can be susceptible to corrosion if not properly maintained or protected with cold traps.



Oil-free pumps, such as screw pumps or diaphragm pumps, offer a cleaner vacuum environment, eliminate oil changes and disposal, and often feature high chemical resistance. While diaphragm pumps may not reach the mTorr levels of rotary vane vacuum pumps, advanced screw pumps can.

Maintenance

Consider the maintenance requirements. Oil-free pumps generally require less maintenance, with some designs having no wear parts, reducing downtime and operational costs.

Pumping Speed/Capacity

While a higher pumping speed can evacuate the system faster, excessively high flow rates (e.g., above 40 L/min) on vacuum manifolds can sometimes accelerate sublimation and reduce the effectiveness of cold traps, potentially leading to more frequent oil changes in oil-sealed pumps. For typical Schlenk line setups, a pumping speed of 3 to 12 m³/h is often suitable.

Recommended Schlenk Line Vacuum Pumps from BRANDTECH

BRANDTECH Scientific offers VACUUBRAND innovative vacuum solutions ideal for Schlenk line applications:

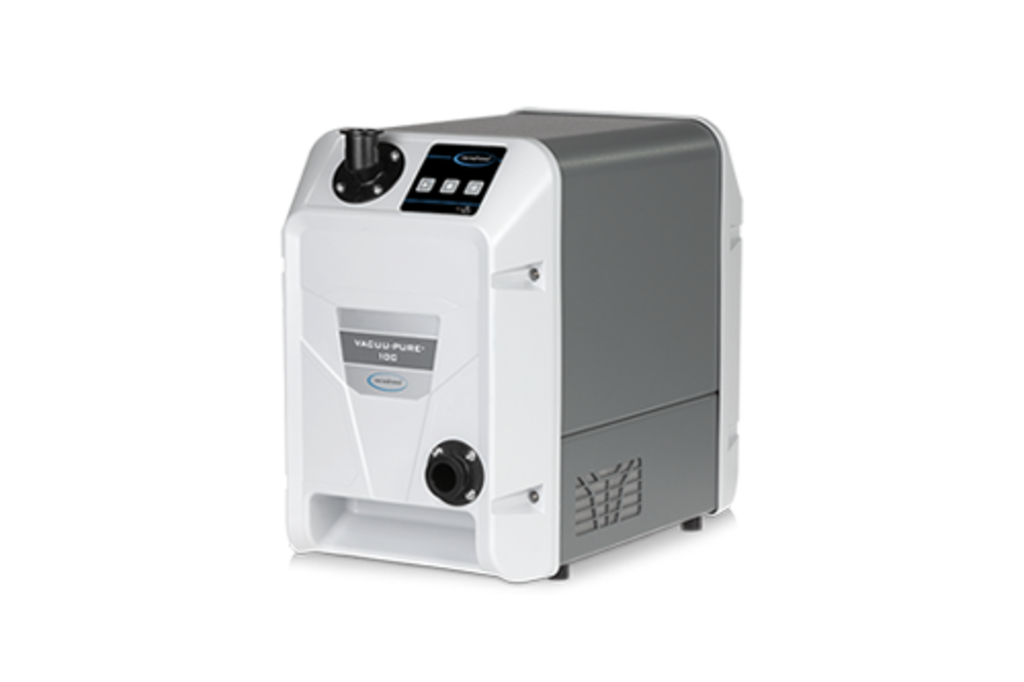

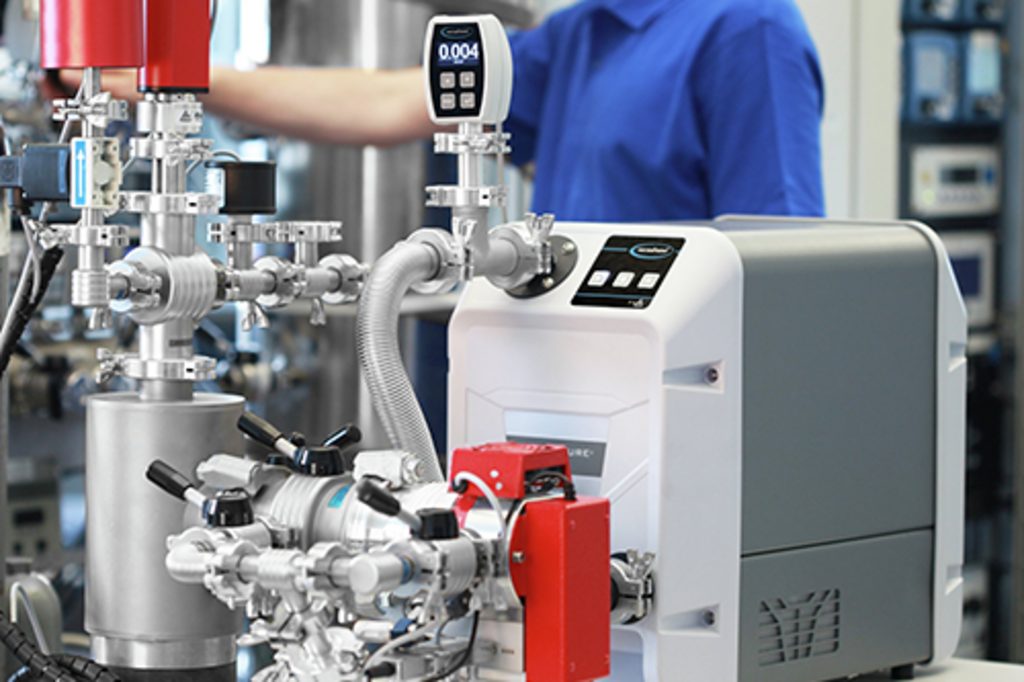

VACUU·PURE 10C Screw Pump

Our oil-free screw pump is an excellent choice for Schlenk lines requiring a deep vacuum down to the 10-3 mbar range. Its 100% oil-free operation means no oil contamination and no oil changes. The VACUU·PURE 10C is chemically resistant, has no wear parts, and can handle aggressive gases and vapors, often making a cold trap unnecessary for many applications. It efficiently manages high vapor loads and includes a regeneration mode for rapid internal drying, enhancing sample throughput.

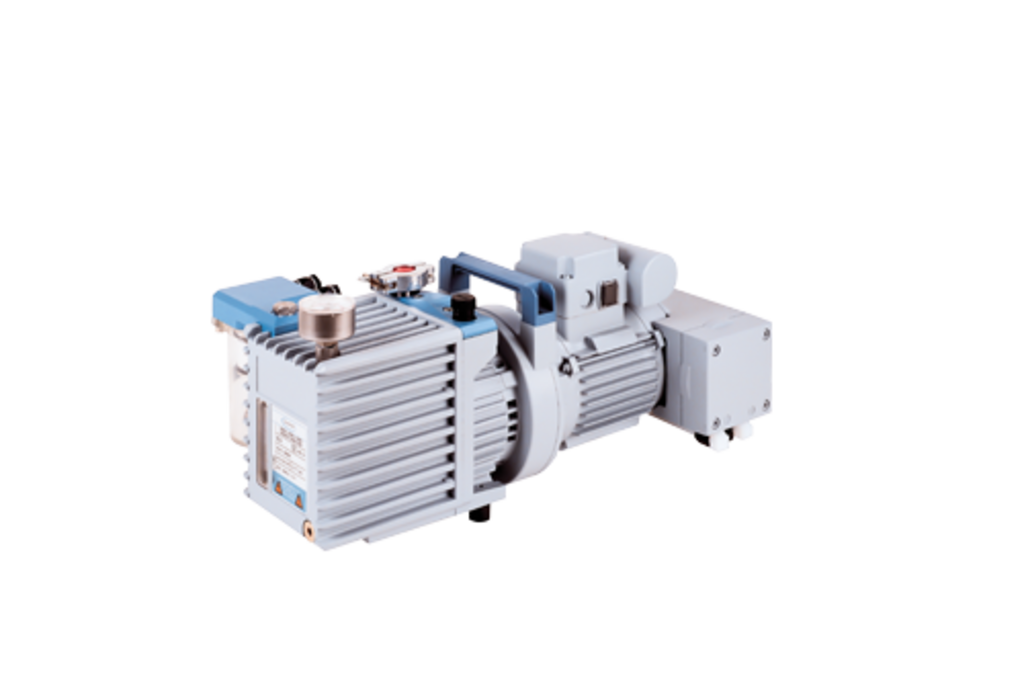

RC 6 Chemistry-HYBRID Pump

The RC 6 combines a two-stage rotary vane pump with a two-stage chemistry diaphragm pump. This hybrid design offers enhanced corrosion resistance by keeping the oil reservoir under vacuum, significantly reducing the partial pressures of solvent vapors and the concentration of oxygen and corrosive gases within the oil. This results in a much higher solvent vapor pumping capability and resistance to aggressive gases compared to conventional rotary vane pumps, drastically reducing the need for oil changes (by 90% or more). It achieves an ultimate vacuum of 2 x 10-3 mbar (without gas ballast).

Vacuum Accessories for Schlenk Line Setups

To optimize your Schlenk line performance and protect your vacuum pump, consider these accessories:

  • Cold Traps (Dewar Flasks): Essential for trapping solvent vapors and corrosive substances before they enter the pump.
  • Vacuum Tubing: Use appropriate tubing that is chemically resistant and can withstand the vacuum levels. Options include flexible hosing like Tygon tubing, vacuum-grade rubber tubing, flexible stainless steel, or PTFE tubing, which offers superior resistance to organic solvents.
  • Vacuum Gauges: Crucial for monitoring the pressure within the vacuum manifold, ensuring optimal conditions for your experiments.
  • Acid Neutralization Traps: Recommended when working with strong acids to protect the pump, used in conjunction with a cold trap.
  • Valves and Connectors: High-quality, leak-tight valves and connectors (e.g., KF fittings) are vital for maintaining the integrity of the vacuum system.
