What is a Vacuum Oven?
A vacuum oven is a sealed chamber connected to a vacuum pump. By reducing the chamber pressure, the pump significantly lowers the temperature at which liquids boil. This allows rapid evaporation of solvents (like water) at temperatures well below their normal boiling points, protecting heat-sensitive materials. Heat transfer under vacuum primarily occurs through conduction from heated shelves and radiation, as convection is minimal.
What are Vacuum Ovens Used for?
Vacuum ovens are used for:
- Drying heat-sensitive materials (pharmaceuticals, electronics, biological samples).
- Achieving very low residual moisture levels.
- Removing solvents, including high-boiling point ones.
- Drying complex or porous materials.
- Degassing liquids or solids.
- Preventing oxidation during drying.
- Other processes like curing, bake-out, and moisture determination.
Vacuum Oven Process Requirements
Effective vacuum drying requires:
- Appropriate Vacuum Levels: Rough vacuum. The required pressure, often below 10 torr (below 12 mbar), depends on the solvent's boiling point, maximum sample temperature, and desired dryness. Deeper vacuum (down to 1.5 mbar or even 10−3 mbar) is needed for high-boiling solvents or very low temperatures.
- Sufficient Vapor Handling: Pumps need adequate pumping speed (flow rate) to remove vapors efficiently, especially during initial drying stages. Good condensate tolerance is also key.
- Efficient Heat Transfer: Good contact between the sample and heated surfaces is vital due to reduced convection.
- Inlet Protection: An inlet catch pot (AK) or cold trap is usually recommended to protect the pump from liquid droplets and particles.
Why Is it Important to Have a Good Vacuum Pump?
A well-matched pump ensures:
- Efficiency: Faster drying times by quickly reaching target vacuum and handling vapors.
- Sample Integrity: Maintains correct vacuum, preventing overheating and contamination (especially with oil-free pumps).
- Reliability: Pumps with proper chemical resistance and protection last longer.
- Safety & Environment: Minimizes hazardous vapor release, especially with exhaust condensers.
Vacuum Oven Pump Requirements
Key pump characteristics include:
- Ultimate Vacuum: Must be lower than the solvent's vapor pressure at the drying temperature. Deeper vacuum (e.g., 1.5 mbar, 10−3
- Chemical Resistance: Wetted parts (PTFE, PEEK etc.) must resist corrosive vapors. Look for "chemistry" designated pumps.
- Condensate Tolerance & Gas Ballast: Ability to handle vapors without performance loss is crucial. Gas ballast purges condensates.

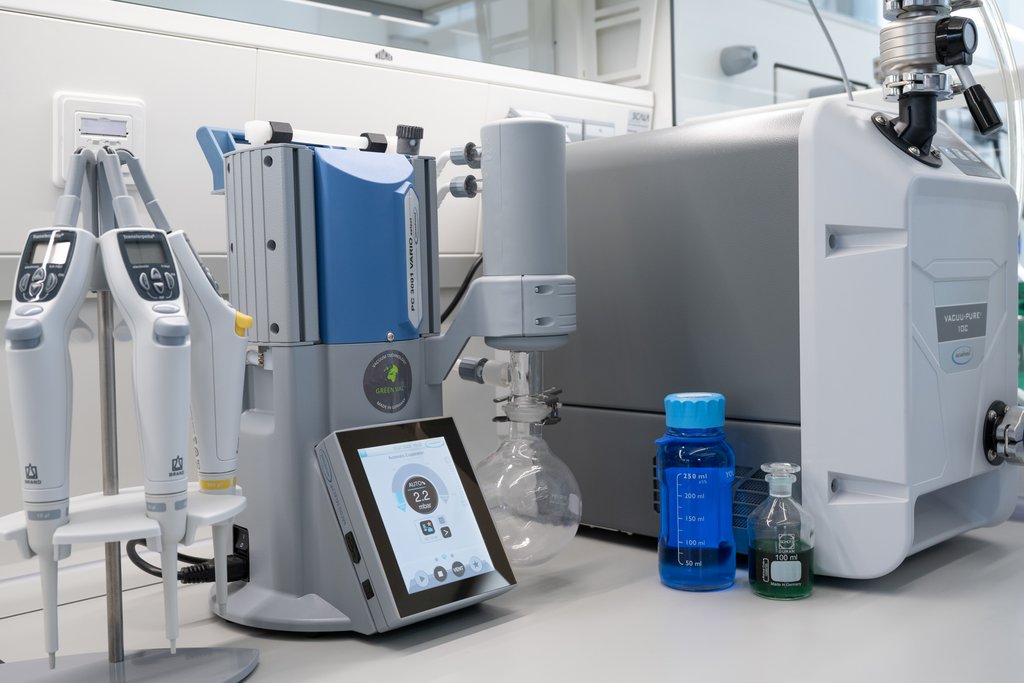

- Oil-Free Operation: Diaphragm pumps and screw pumps are preferred to avoid contamination and reduce maintenance. Oil-sealed pumps need traps and oil changes.
- Pumping Speed: Sufficient for oven size and vapor load.

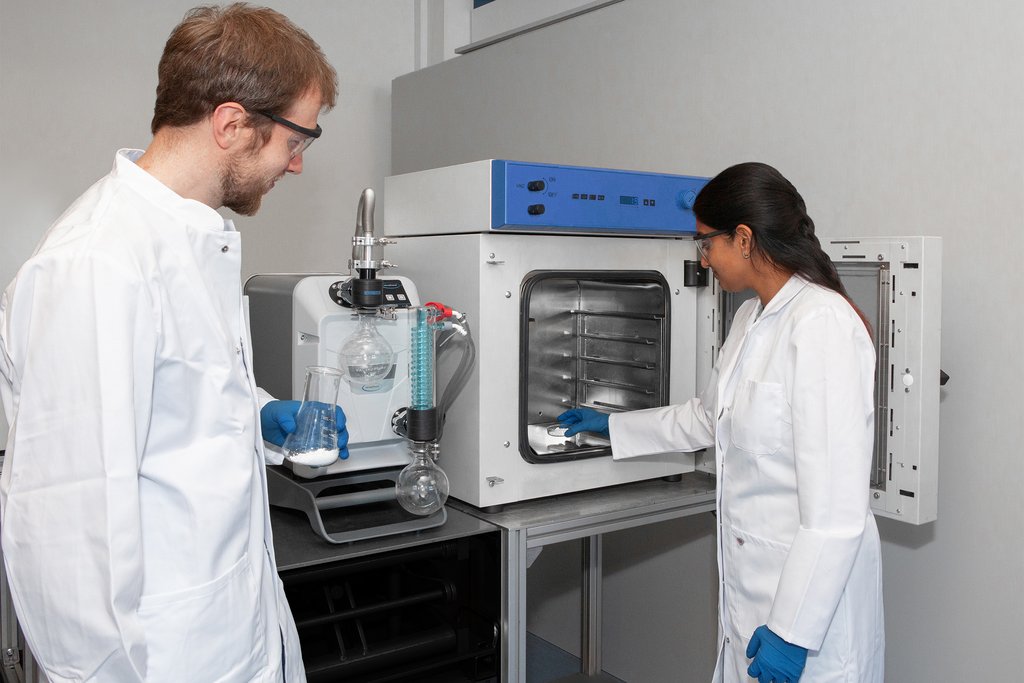

- High-Quality Accessories: Inlet catch pot (AK) strongly recommended. Exhaust condenser (EK) for solvent recovery/emission control.
Key Factors to Consider When Choosing a Vacuum Pump for Your Vacuum Oven
- Application & Solvents: The type of material you're drying and the solvents involved will determine how much chemical resistance your pump needs. For harsh or corrosive vapors, choose a pump designed for “chemistry” applications.
- Required Vacuum Level & Control: Make sure the pump can reach the ultimate vacuum required for your process. If you're working with sensitive materials or varying solvents, a pump with precise, automatic vacuum control (like VARIO select) can improve consistency and safety.
- Oven Size & Vapor Load: Larger ovens and higher vapor volumes demand greater pumping speed (flow rate). Undersized pumps may slow drying or struggle to maintain stable vacuum levels.
- Pump Technology: Oil-free options like diaphragm or screw pumps are clean, low-maintenance, and ideal for most vacuum oven applications. Oil-sealed pumps, such as a rotary vane vacuum pump, may be used in some setups but require more upkeep, including oil changes and traps for solvent vapors.
- Accessories: Use an inlet catch pot (AK) to protect your pump from particulates and liquid droplets. An exhaust condenser (EK) helps recover solvents and minimizes vapor release into the lab.
- Cost & Maintenance: Consider more than just the purchase price; factor in maintenance intervals, expected lifespan, energy use, and downtime. A pump that’s easier to maintain often saves money over time.
Operational Tips
- Evacuate Before Heating: Always start by pulling a vacuum before applying heat. This helps protect your samples and prevents boil-over or bumping.
- Use the Right Accessories: Inlet traps (AK) and exhaust condensers (EK) protect your pump and help with solvent recovery. Make sure they’re properly installed and maintained.
- Stick to Regular Maintenance: Follow the manufacturer’s maintenance guidelines, including oil changes for oil-sealed pumps and routine filter checks.
Prioritize Safe Operation: Use appropriate tubing, check all connections, ensure good ventilation, and never block the exhaust line
